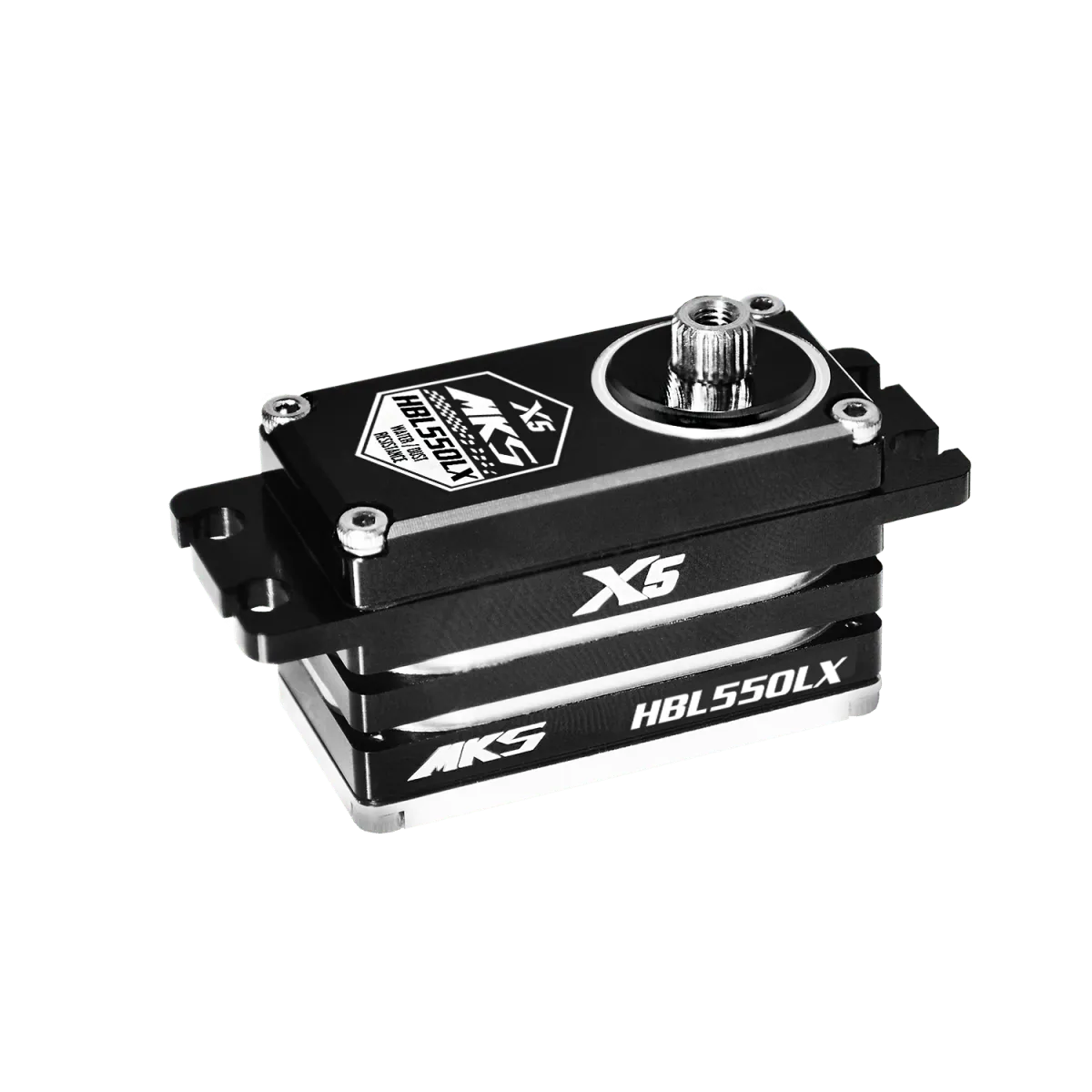

MKS Black Alloy HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo
$189.95 Inc GST
MKS Black Alloy HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo
Rewards
You could earn up to 1,900 points when you purchase this product. Find out more
Brand:MKS SERVO TECH
- Description
- Additional information
- Brand
Description
MKS Black Alloy HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo
| SKU | MKS-HBL550LX | |
| Quantity in stock | 705 item(s) available | |
| Dead Band | 0.001ms (Default) | |
| Spline Size | 6mm 25 tooth | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 3.7 ~ 7.4 Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.13 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.09 sec/60° degrees at no load | |
| Stall Torque (4.8V) | 144 oz/in (10.4 kg/cm) | |
| Operating Speed (7.4V) | 0.08 sec/60° degrees at no load | |
| Stall Torque (6V) | 180 oz/in (13 kg/cm) | |
| Stall Torque (7.4V) | 222 oz/in (16 kg/cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | 12×8 mm Double bearings | |
| Gear Type | Alloy gear | |
| Dimensions | 40 x 20.5 x 26.40 mm | |
| Weight | 57.8 g | |
Additional information
| Weight | .25 kg |
|---|
