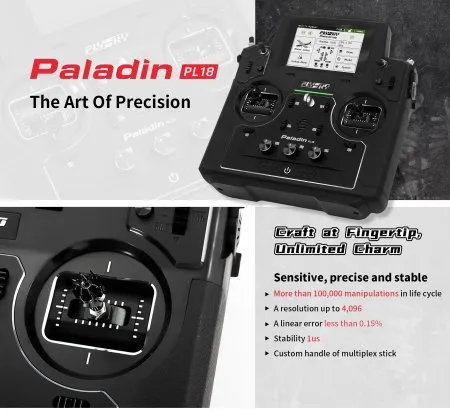

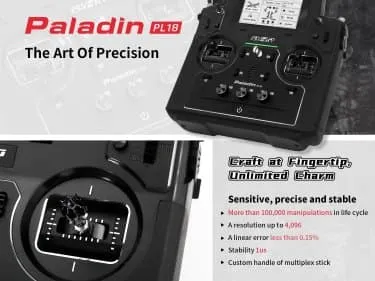

PL18 2.4GHz AFHDS3 18CH Radio System

Description

PL18 2.4GHz AFHDS3 18CH Radio System

PALADIN PL18 SPECS:

Channels: 18
Model Type: fixed wing, helicopter, crossing machine, multi-axis, engineering vehicle
RF: 2.4G
RF Power: < 20 dBm
2.4GHz Protocol: AFHDS3
Distance: >3KM
Channel Resolution: 4096
Battery : 1S (3.7V) * 4300mAh (built-in)

Charging Interface : Micro USB / wireless charging
Charging Time: 6h@5V/7h@2A (wireless charging)
Life time: > 8h
Low Voltage Warning: <3.7V

Antenna Type : Dual antenna
Display: HVGA 3.5″ TFT, 320*480
Language: Chinese and English
Simulator: USB Simulator
Data Interface: USB, Non-standard interface (USART), PHJACK (PPM)

Temperature Range: -10 ° C – + 60 ° C
Humidity Range: 20%-95%
Online Update: support
Transmitter Color: black
Dimensions (length x width x height): 214*86.5*192 mm
Body weight : 946g
Certification CE, FCC ID: N4ZFT1800, RCM
