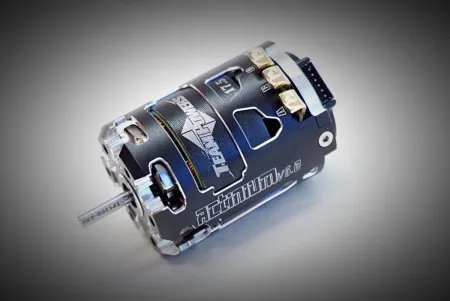

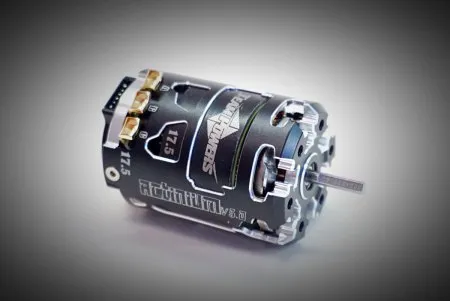

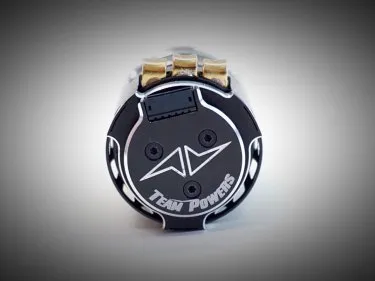

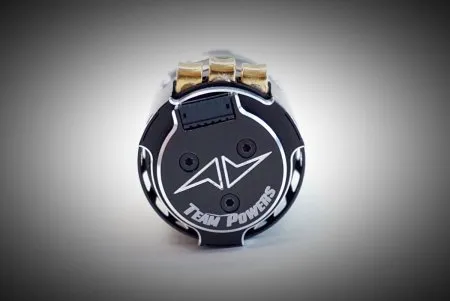

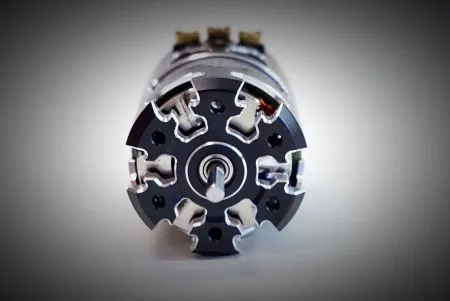

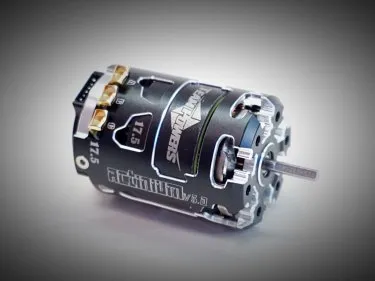

TEAM POWERS Actinium V5 Edition (ROAR APPROVED)

Enhancements based on the Actinium V4 motor:

Revised end bell assembly design for improved sensor accuracy.

Long stator screws were removed, and we revised stator plates to improve magnetic field consistency and efficiency.

Copper wiring purity increased for minimized resistance. Hand wound for maximum accuracy and efficiency.

Revised rotor magnetic material for improved strength, efficiency, and reduced fade.

The motor can machine profiles are slightly revised from V4 to enhance convection cooling.

Collector ring machined from proprietary alloy, resulting in minimal resistance and maximum heat dissipation.

Gold Plated high purity copper solder tabs(ABC)

Specifications

•Based on IFMAR/ROAR/EFRA/BRCA design specifications.

•Modified winds, 13.5T, 17.5T, and 21.5T motors are all ROAR approved (BRCA pending).

•Motor Dimensions (Diameter x Length) 35.8mm x 52.2mm.

•Shaft Diameter: 3.17mm

•Magnet Dimensions

12.3 x 5x 24.2mm(3.5T~9.5T),

12.5 x7.2×25.2mm (10.5T~21.5T),

12.3 x7.2×25.2mm (25.5T)

Variable timing end bell

•Weight: ~150g (varies between turns)

•Recommended RC Model Car: 1:10 touring, Buggy, MINI Car.

Available Turns: 4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T,25.5T *3.5T order by request.

Perfectly matched to the new Radon V5-BT Pro 200A ESC.
