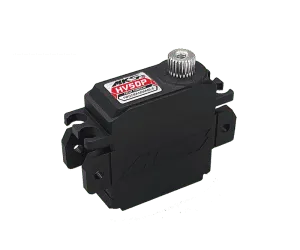

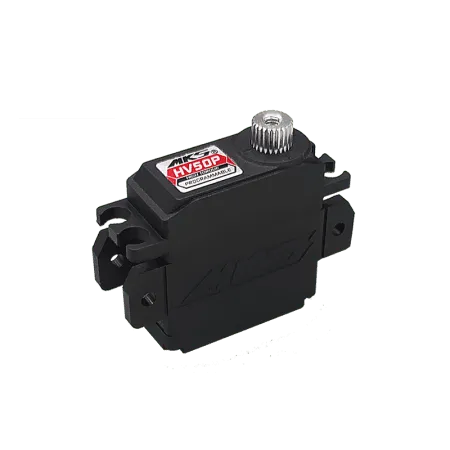

MKS HV50P Micro 8.3kg 8.4V Coreless Metal Geared Servo

Description

MKS HV50P Micro 8.3kg 8.4V Coreless Metal Geared Servo

HV50P was developed by MKS servo and Max Mächler who is the European stock champion and MKS factory team driver.

1. HV50P could be installed directly without any modification (Pin to Pin).
2. Higher accuracy and dead band, and higher torque, smooth cornering and controlling.
3. Reduced weight for 5~10% (3~5g), faster acceleration and less centrifugal force
4. Strong all metal gear and structure and independent programmable function.
5. Unanimously approved by professional drivers.

Torque (3.7V)：3.75 kg-cm / 52.08 oz-in

Torque (6.0V)：6.1 kg-cm / 84.71 oz-in

Torque (7.4V)：7.5 kg-cm / 104.16 oz-in

Torque (8.2V)：8.3 kg-cm / 115.27 oz-in

Speed：0.157 s (3.7V)  /  0.097 s (6.0V)  /  0.079 s (7.4V)  /  0.071 s (8.2V)

Weight：18.1 g  (0.64 oz)

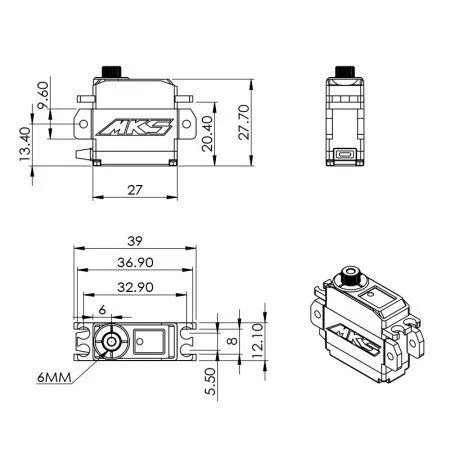

Dimension：27 x 12.1 x 27.7 mm
