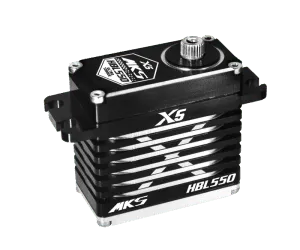

MKS Black Aluminium HBL550 Standard 38kg 8.4V Brushless Metal Geared Servo
$189.95
MKS Black Aluminium HBL550 Standard 38kg 8.4V Brushless Metal Geared Servo
- Description
- Additional information
- Brand
Description
MKS Black Aluminium HBL550 Standard 38kg 8.4V Brushless Metal Geared Servo
| SERVO SPECIFICATION | |
| Torque (kg-cm) | 29 (6.0V) / 36 (7.4V) / 38 (8.2V) |
| Torque (oz-in) | 402.7 (6.0V) / 499.9 (7.4V) / 527.7 (8.2V) |
| Speed | 0.117 s (6.0V) / 0.094 s (7.4V) / 0.085 s (8.2V) |
| Stall Current (at locked load) | 9.0A (6.0V) / 11A (7.4V) / 12A (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2x Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Brushless Motor |
Additional information
| Weight | .25 kg |
|---|
