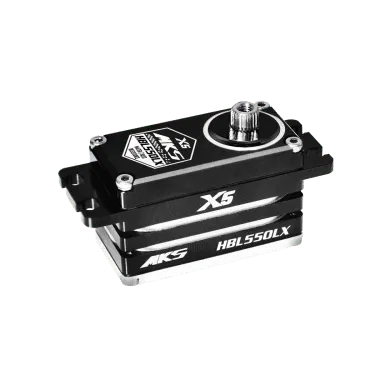

MKS Black Alloy HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo
$189.95
MKS Black Alloy HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo
- Description
- Additional information
- Brand
Description
MKS Black Alloy HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo
| SKU | MKS-HBL550LX | |
| Quantity in stock | 705 item(s) available | |
| Dead Band | 0.001ms (Default) | |
| Spline Size | 6mm 25 tooth | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 3.7 ~ 7.4 Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.13 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.09 sec/60° degrees at no load | |
| Stall Torque (4.8V) | 144 oz/in (10.4 kg/cm) | |
| Operating Speed (7.4V) | 0.08 sec/60° degrees at no load | |
| Stall Torque (6V) | 180 oz/in (13 kg/cm) | |
| Stall Torque (7.4V) | 222 oz/in (16 kg/cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | 12×8 mm Double bearings | |
| Gear Type | Alloy gear | |
| Dimensions | 40 x 20.5 x 26.40 mm | |
| Weight | 57.8 g | |
Additional information
| Weight | .25 kg |
|---|
Brand
MKS SERVO TECH
