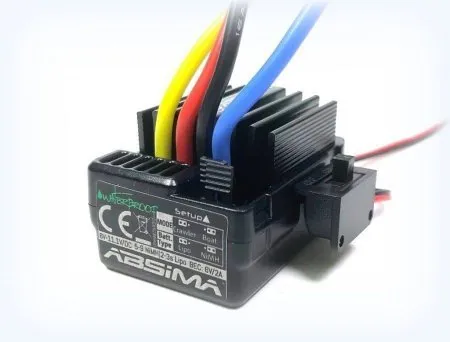

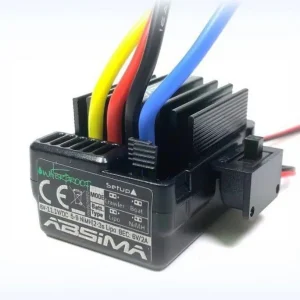

BRUSHED ESC FOR CRAWLERS AND BOATS

• Water-proof and dust-proof for all weather races
• Small size with built-in capacitor module
• Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
• Easily programmed with “jumpers”

SPECIFICATION:

• Application: Crawler & Boat
• Cont. / Burst Current – forward: 40A / 180A
• Cont. / Burst Current – reverse: 20A / 90A
• Input: 2-3S LiPo / 5-9 Cells NiMH
• Battery “Low-Power” Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
• Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
• Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
• Maximum Reverse Force: Boat 25% / Crawler: 100%
• Overheat Protection: 100°
• Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
• Built-in BEC: 2A/6V (Linear Mode BEC)
• Plug System: Tamiya
• Plug & Drive System: yes
• On/Off Switch: yes
• Dimmension (L/W/H): 46.5*34.0*28*5 mm
• Weight: 70g

SCOPE OF DELIVERY:

• WP1040 Brushed Crwaler & Boat ESC
• Manual
